Next step in the cyclone project.

3D Printing
,
1

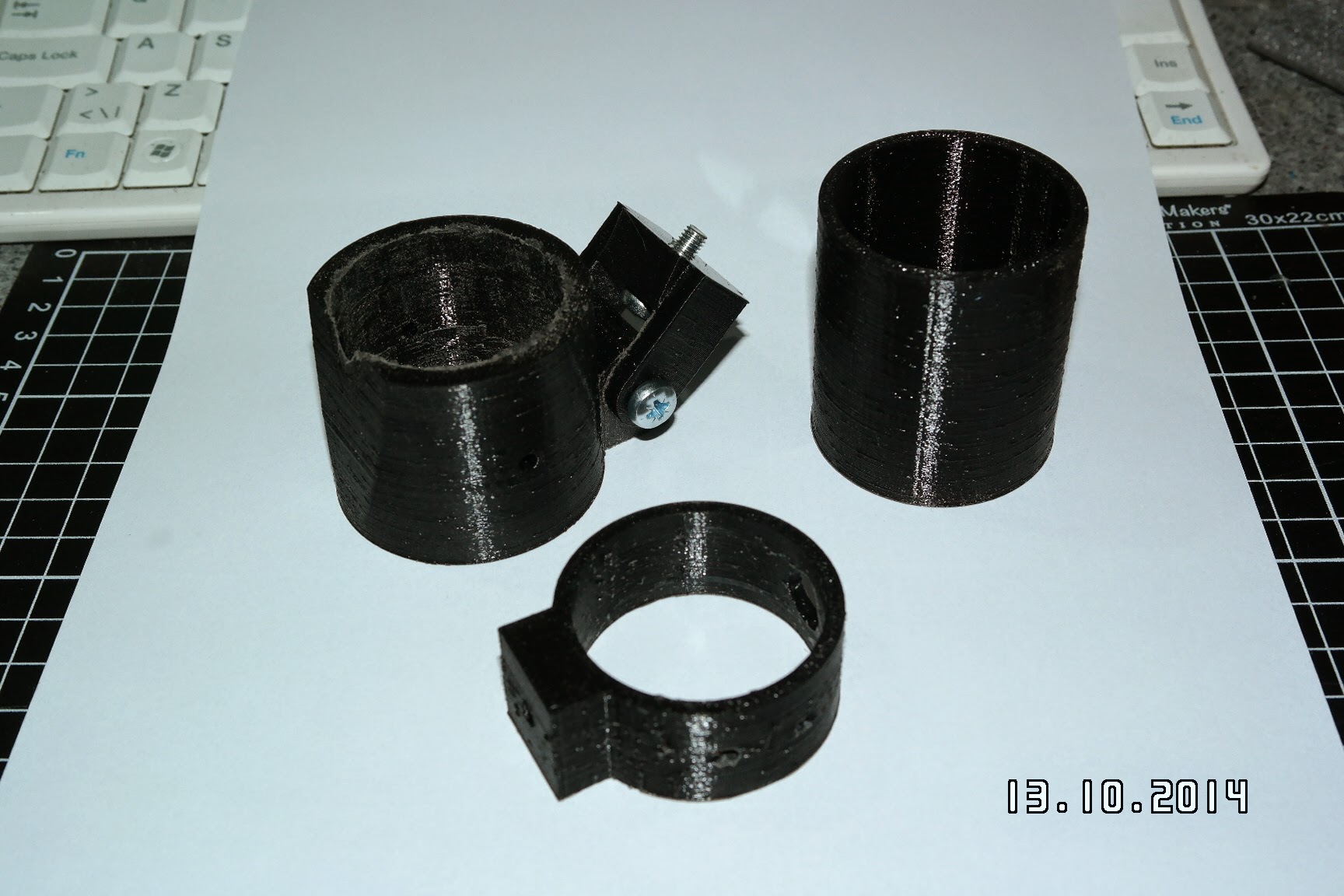

Next step in the cyclone project. Hose attachment parts and then final installation on my DIY CNC.

9f7c14289ff2adfd277b41c489e94df6.jpeg1728×1152 255 KB

bb111cfbfba04aee335e30fce9c691b7.jpeg1728×1152 562 KB

2

Hi Jørgen, do have drawings of your CNC? It looks perfect for my RC planes

3

No, i have a rough sketch of the first version. But I have upgraded with supported rails after that.
