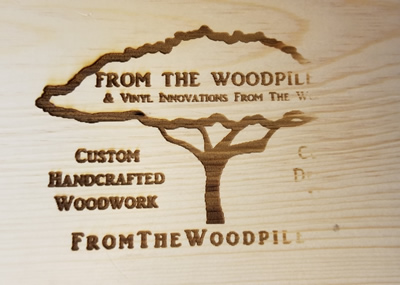

OK guys I need some help, I finally got my laser up and running and “learned” the software good enough to get some engraving done, but this is what I ended up with. Can anyone give me any ideas why the laser it not working on the left side of my design. It is only a 5 x 8 piece of wood.
mirror and head alignment,
I did the line up stuff where you shoot the beam to make sure it is hitting at every corner, what else would you suggest
Do you have the air assist head?
I just got one, I have not added it yet
move the head to the places where the engraving is not happening and see if the beam is hitting the center of the mirror on the head
I can’t remember who it was but somebody had a similar thing, his laser was hitting the centre of the mirror but the height wasn’t right on the second mirror so the laser wasn’t firing at a 90° from the head. @donkjr will remember as I believe he helped correct it.
@Doug_Western if the beam hits the mirror in the center but does not reflect into the objective perpendicular to the gantry the beam can hit the side or off center on the objective lens, thus blocking the light.
Manually move the head on the gantry to the position it stops marking and use the test button to see if you can find out why it is not going down through the objective straight.
Sometimes you can take the lens holder apart and see damage inside where the beam hits anything other than the lens.
Another test is to position and somehow lock the head, do a test mark, lower the table make another test mark and see if the two marks are in the same place. If not the beam is not perpendicular to the table and objective.
A lack of perpendicularity can be cause by anything that does not run parallel to the gantry including the beam exiting the laser …
@Doug_Western what procedure did you use for alignment? It really looks like an alignment issue to me. There are a couple of good guides on here if you search #K40alignment.
I think I got it - it was the mirrors - pretty sure I had lined them up, but maybe I missed it so bad I just thought it hit the same dot - lol

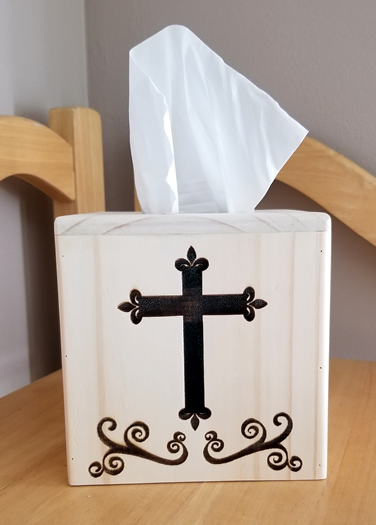

@Doug_Western can we see an after picture :)!
Ok - you’ve officially navigated the K40 Rite of Passage - now go make yourself up a reward plaque !
Looks Great !!! Good Job
Thanks
