Originally shared by Ben Delarre

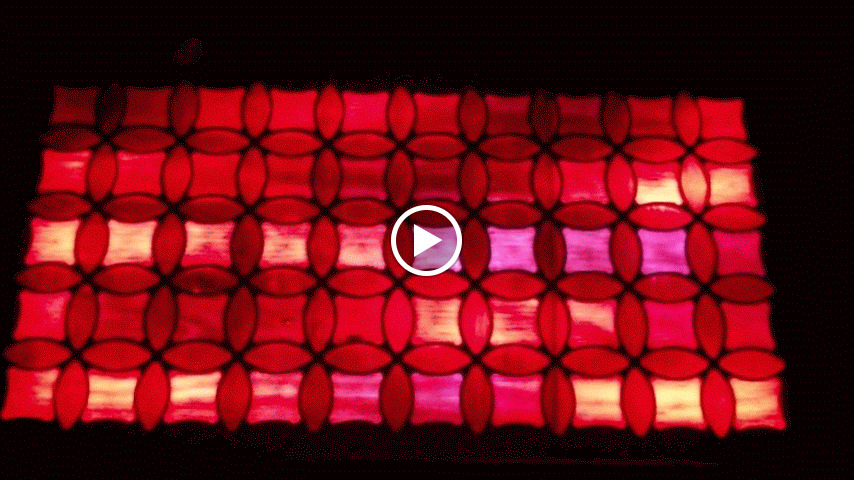

This weekends CNC + LED project. Its Chinese New Year so we cut this fairly traditional pattern into some 12mm plywood. I then thinned it down from the back side till it was thin enough to let the light glow nicely. With a second layer of 12mm plywood to act as a spacer. I then added 140 ws2812 leds to a thinner sheet which I will screw into the back.

Came out lovely, still have a lot of sanding and finishing to do but the effect is awesome.

74179f0ba87f2e262d37d703b0bc6f9c.gif854×480 138 KB

7026c8aea35e7c46cb12ef1e32a3114a.jpeg2448×3264 1.81 MB

5a32b88c31e6e7851dcafe4f8a3d99c6.jpeg3264×2448 2.09 MB

3273144bd9e83cb02f5de6cee419641b.jpeg3264×2448 1.68 MB

223162e0ba1bd49db419da8d202adda9.jpeg3264×2448 1.54 MB

fbb77b89d4432bf85bc898b83ddbb3b7.jpeg3264×2448 1.55 MB

d7216440aabf65ba580a1ee03d974d64.jpeg3264×2448 1.63 MB

523b1f0a7872e69bc3eee9f1dab1129f.jpeg3264×2448 1.66 MB

1fd83f1a25b6ed82c664738c70f6ef08.jpeg3264×2448 1.66 MB

2

This is beautiful! Just curious… what kind of end-mill did you use and how long did it take to cut?

3

I used a 1/4" 2 flute upcut bit mostly that the bottom of the pockets is clean as it’s hard to sand such thin wood. I then pocketed out the back to get the wood to the right thickness using a half inch cutter just for speed. Top took about an hour and the bottom took a similar amount. Then another half hour or so to cut out a spacer layer and the back panel.
