Originally shared by Michel Pollet Thats the spindle clamps printed.

General CNC CNC Routers
, ,
1

Originally shared by Michel Pollet

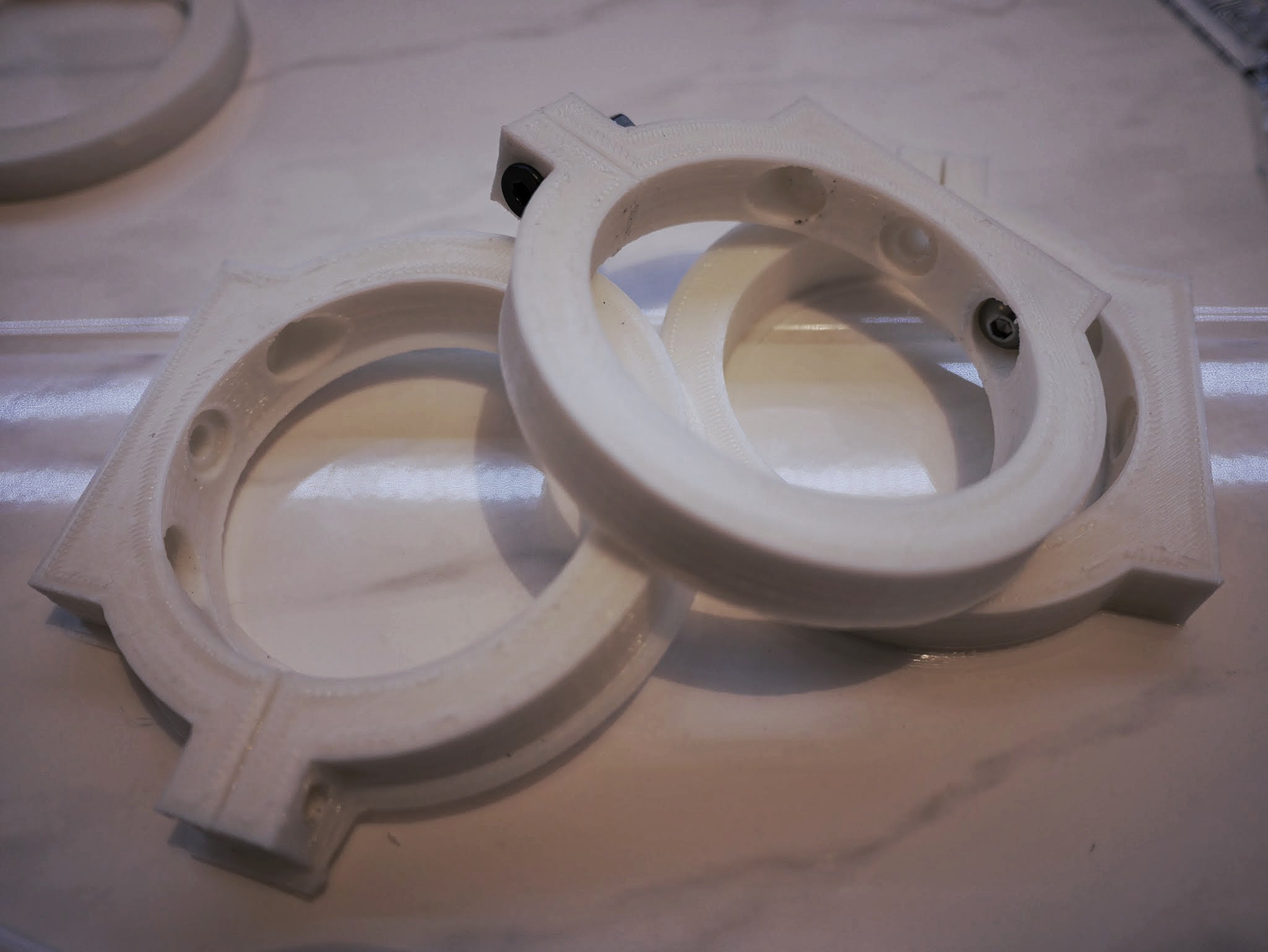

Thats the spindle clamps printed. I’ve also extended the design so I can CNC some using 5mm aluminium, basically by printing two side and screwing them together with (neatly provided) M3 holes ready to be taped.
I’ve put the new design (OpenSCAD, and the 2 .STL’s, one for each ‘version’) on my github, if anyone is interested…https://github.com/buserror/buserror-reprap/blob/master/stl/buserror-spindle-cnc-mount-cnc.stl

461515798f0020e1bd2b3195ddd53dbc.jpeg2048×1538 158 KB



2

Thats the nice thing about OpenSCAD, its all parametric really. I already tweaked it futther to allow using 4mm aluminium… Seems it’s a lot easier to buy than 5mm somehow… Well anyway, thats also a nice STL to try to CAM and simulate it :slight_smile:
