PCB Widget - Eagle & KiCad

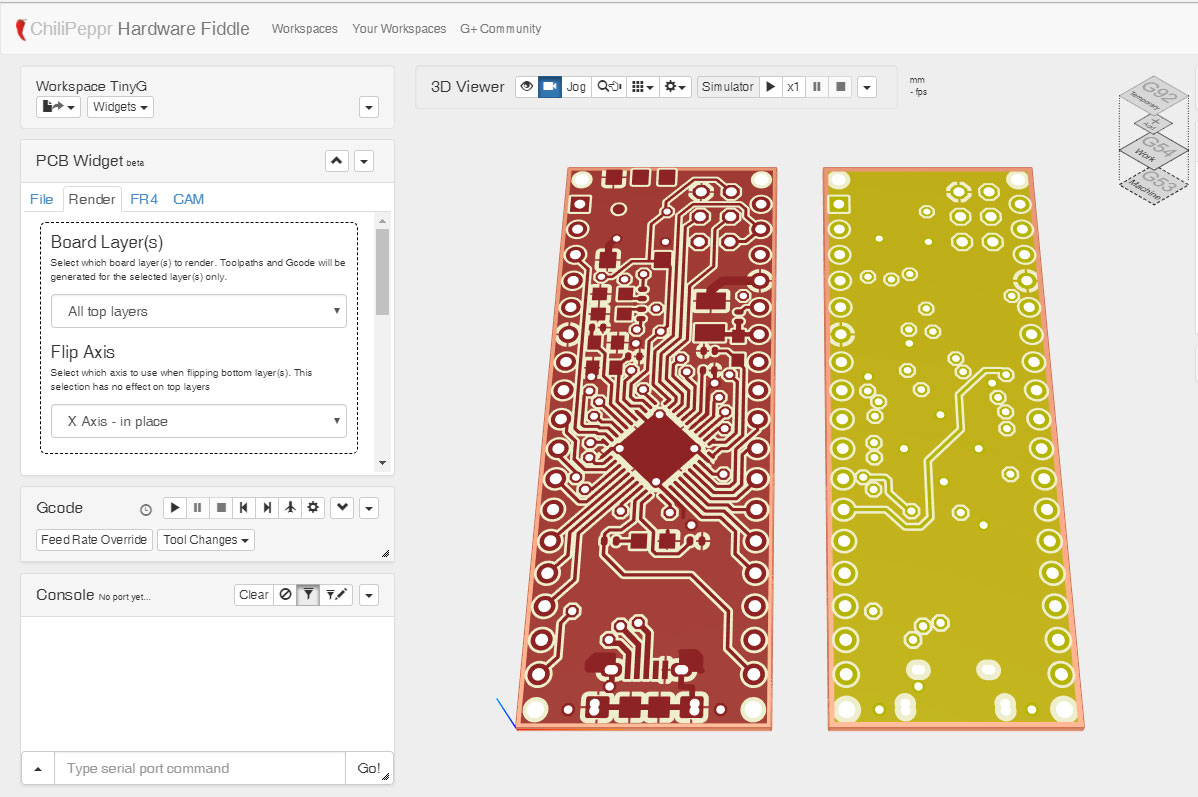

Few screenshots from the new PCB Widget, it’s now available from my workspace: http://www.chilipeppr.com/ameen.
The widget at this stage can render Eagle .brd & KiCad .kicad_pcb files, I still need to do lot of work before the widget is fully functional, for now I need to get your feedback about board rendering, if anyone spots defects or bugs please post them on github (https://github.com/ameennihad/widget-pcb) with screen shots and sample files if possible.

Notes:

  • Drag/Drop not implemented yet, use the file tab to load your board files.
  • There are know issues with polygons and signal clearance, to be solved soon.
  • Gcode creation is not implemented yet.
