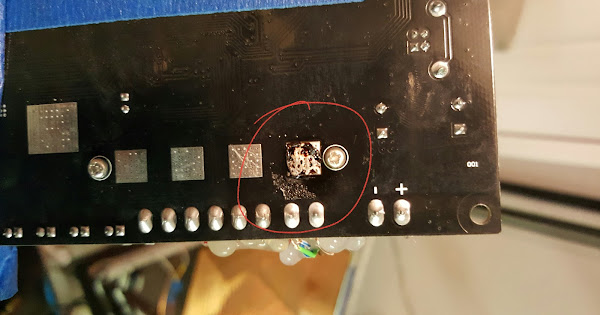

Pics of my failure... As one friend dubbed,"the great smoke dragon of 2016".

3D Printing
,
1

Pics of my failure… As one friend dubbed,“the great smoke dragon of 2016”. once I’m finally done perfecting the build I’m gonna have to make a photo journal

3 new items by kenneth rooks
2

Ah, more MKS fun.

3

@Arthur_Wolf for the collection

4

Yea yea, just sharing my F up with folks who understand. Haha

5

Nice

6

Oh, this is the same thing you burned earlier. Ok.

7

Ouch, FET goes by by

8

Yea the same one

9

RIP Mosfet. Thats rough!

10

@Michael_Johnson ​ trying to power over 600mm in diameter, yep i originally(stupidly) tried to power via the board . Now I’m gonna go the solid state relay route

11

If you’re going that large of a bed I would recommend using mains power and a SSR like you said. Much safer in my opinion.

12

For sure lessons learned

13

Board looks OK. If it didn’t blow the signal pin on the micro, just replace the FET and you are good to go.

14

I noticed scorching next to a resistor on the board as well. I’d rather replace the whole thing to be safe. But your idea did cross my mind
