Pixel map for Mokungit 93 Leds WS2812B 5050 RGB LED Ring Lamp Light

Archive FastLED Archive
1

e1e34b5680583f47a9d5650e3d8f7463.jpeg765×990 139 KB

2

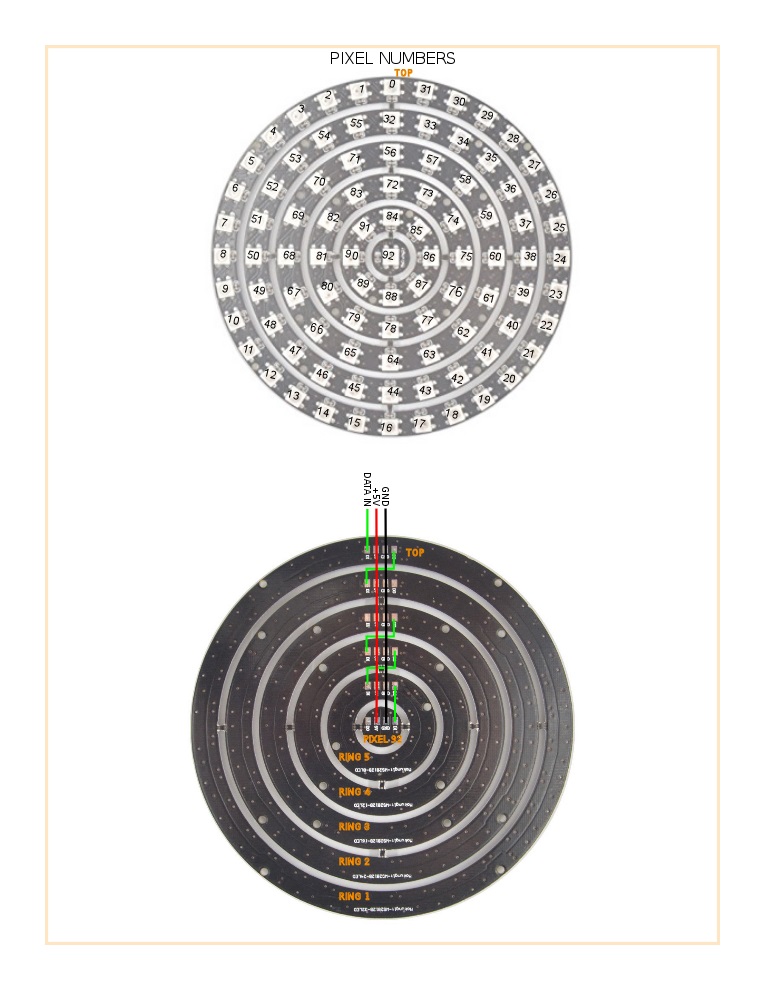

This is the pixel map for the Mokungit 93 Leds WS2812B 5050 RGB LED Ring Lamp Light with Integrated Drivers

3

Ring 2 and 3 are disconnected on that graph.

4

Yes, you are right. There should be a green wire from ring 2 to 3

5

I’ll post a corrected pix.
