Printed out the Automatic Transmission Model by emmett.

3D Printing
,
1

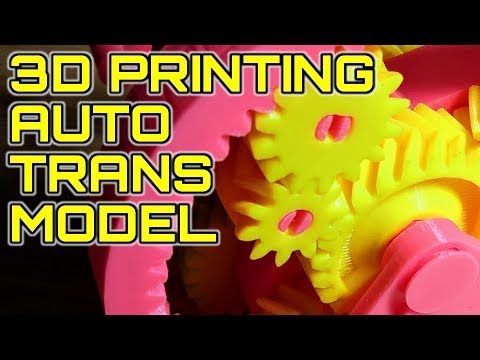

Printed out the Automatic Transmission Model by emmett. In my version, the pieces are real tight, so it doesn’t shift well… however, I did get it together unlike my first try in white…

I made a longer version of the pins without tabs to practice putting it altogether: 3D design Auto Transmission Test Pin | Tinkercad

307c2b1080011bd34a67852bcd8176fe.jpeg2735×3036 1.12 MB

48863fd7d80b3ec9f500b907b1071d7c.jpeg3289×2891 1.89 MB

c001a12c7fab7290b17d862af8cb3dbd.jpeg911×1214 198 KB

2

Nice print

3

I wonder how something like this, printed and then cast in aluminum using the lost plastic method, would work attached to a real motor.
