Quick Release E3D Fan Duct for Mendel90

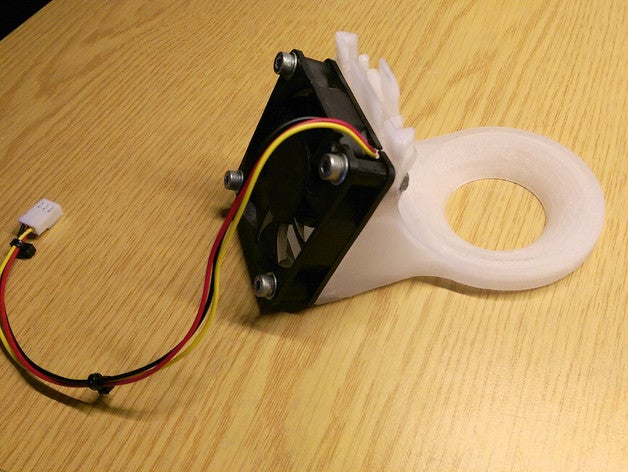

Version 2 of my fan duct for the dibond NopHead Mendel 90.
This one is quick release and has a greater height adjustment which was a common request on the last one.

I’ve only got one problem to iron out and thats the release lever is easy to break off. But it may just be that I don’t have my temps dialed in properly as its breaking on a layer.

ee50764314e79f211f130d57b2a73159.jpeg2292×1520 1.09 MB

780f95b3b31a49e2104c36006b030a33.jpeg1994×1456 874 KB

4c5d153dedb2b4bb2d482db10bde56b4.jpeg1815×1212 648 KB

1ee54d32a005b2397021377d3f193dbd.jpeg1768×1456 785 KB

fff40a870ee53280ea47ac870746ec48.jpeg1768×1456 673 KB

0fefcac557c248ca53a840ac57f1bda5.jpeg1501×1151 446 KB

67fb84e0ffe56bd2019348e830bae81c.jpeg1501×1151 393 KB

2

It works well enough that I can see the difference in print quality when I switch it on and off :wink: But yeah its pretty free flowing there’s almost no back pressure.
