re-build all z stage  and see some bearing are locked...now are in level...little add

3D Printing
,
1

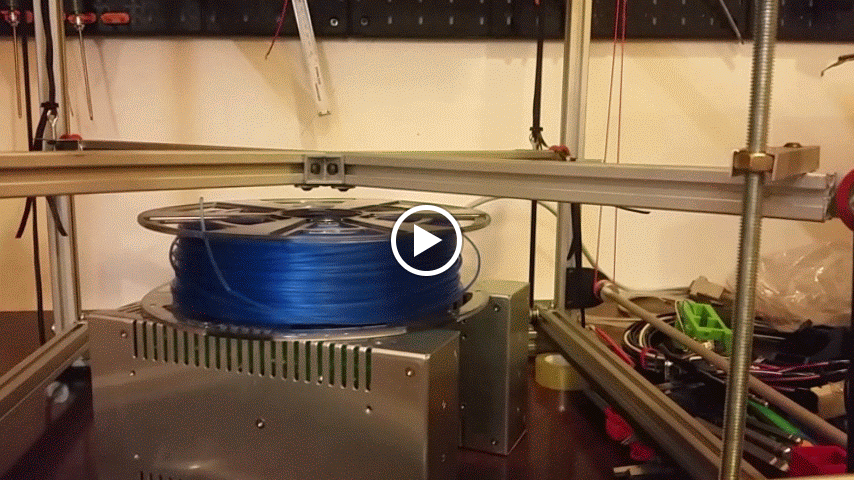

re-build all z stage and see some bearing are locked…now are in level…little add on make in 5 min. :smiley: ramps holder … need try place Z stepper inside or i can’t cover box . xy mounted…half ready to run :smiley:

3a28ebd3698ac41dc749536fb13d9c1c.gif854×480 268 KB

36f5ebe0c8ffbea695e9ac92fc7b4621.jpeg5312×2988 1.81 MB

088185437af224183f8068d851fd65b6.jpeg5312×2988 2.16 MB

e1402faefd58a12d37fc3b7b1a3ca19e.jpeg5312×2988 2.15 MB

c078814ab3545fa22bfcbea6193b5c5b.jpeg5312×2988 1.85 MB

09f1c8c724c251eb2442b114ef81d005.jpeg2988×5312 2.61 MB

2

Ok I’m on double band but currently need find 1.5-2 thin L profiles this 1 are really soft some force and flex…no good

3

@mahsa_sheikhi check this community
