RepRapPro hotend (my favourite design on the market) finally mounted on the X-carriage for

3D Printing
, , , ,
1

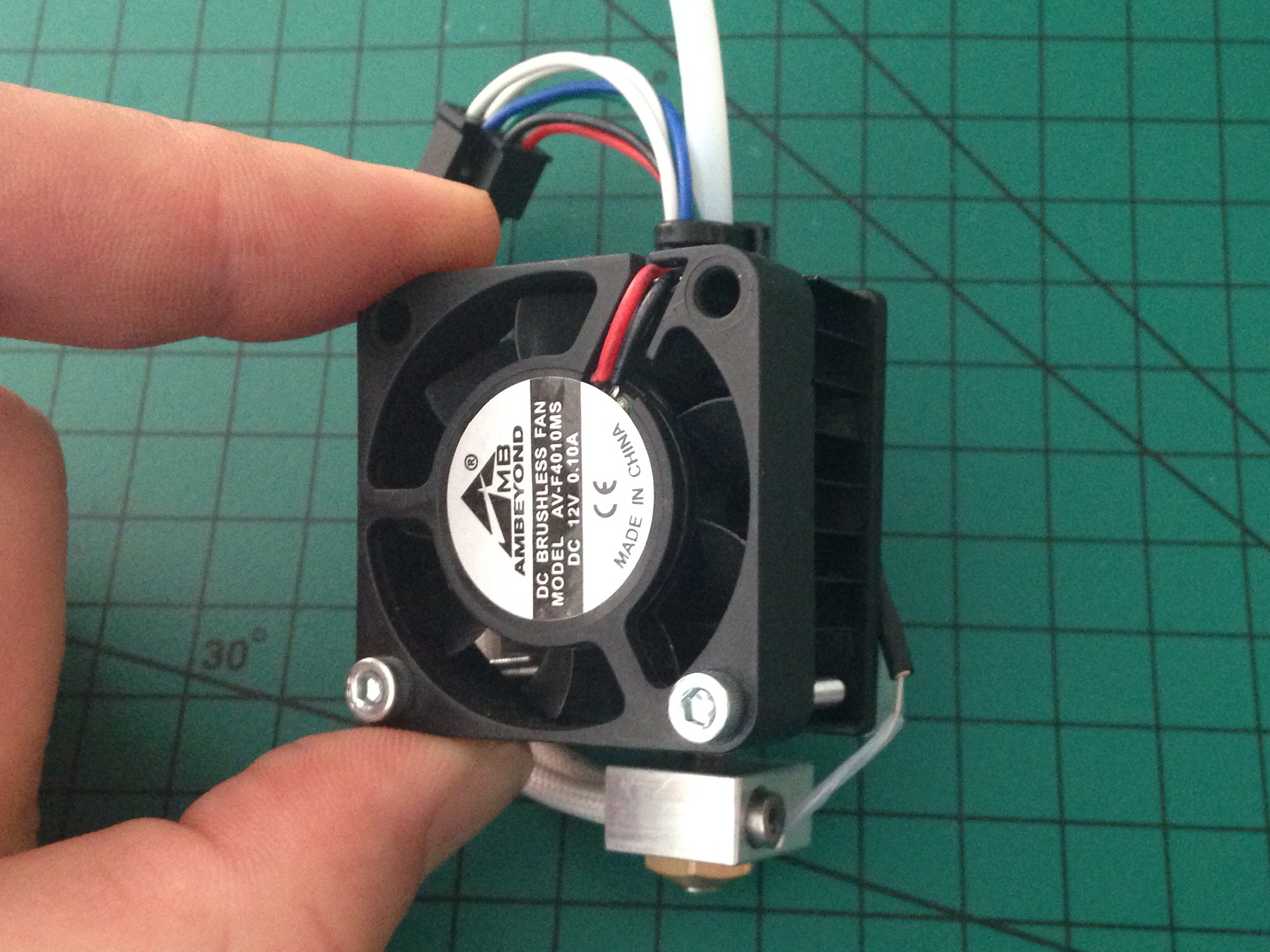

RepRapPro hotend (my favourite design on the market) finally mounted on the X-carriage for my prototype 3D printer.

5d04f13173763695fdf4ce9b7bf89466.jpeg2303×1727 902 KB

bdfbe80f00d0d6c7da20c8409c1dbe9b.jpeg2634×2077 1.26 MB

0e6a5dc19479987bc00f6b89ebbce51f.jpeg2543×1908 1.22 MB

44652630ed3f2948695e1b1c23e7f816.jpeg2840×2130 1.46 MB

8ce4878ea5755eca08f2d6b6f80a0321.jpeg2724×2043 1.14 MB

7d154825416f2cb1270edac833118239.jpeg2727×2045 1.23 MB

2

Hi @Custom_Creations as promised, a few updates on the build coming up. As for your question yes I cut all the laser sections myself and made the printed parts on my Prusa i3.

3

@Custom_Creations I would not advise hand or tool cutting acrylic, it is so messy, easy to crack and not to mention hard work!

4

What type of electrical connection is that. I like the compact size. Source?

5

@Eclsnowman here’s a link http://m.rs-online.com/h5/mobile/uk/catalog?searchTerm=495-9136&search_submit=

6

@Simon_Day thanks.

7

@Eclsnowman n not a problem. I really like these, they make it so easy to swop out hotends to change nozzle diameters.

8

Thanks for the photos

9

@Simon_Day what’s the current capacity? I couldn’t find it in the tech sheet looking on my phone?
