Sharing more progress yesterday ... Getting the touch plate working :).

General CNC CNC Routers
, ,
1

Sharing more progress yesterday …
Getting the touch plate working :).

Originally shared by Don Kleinschnitz Jr.

#OXTinygTouchPlate

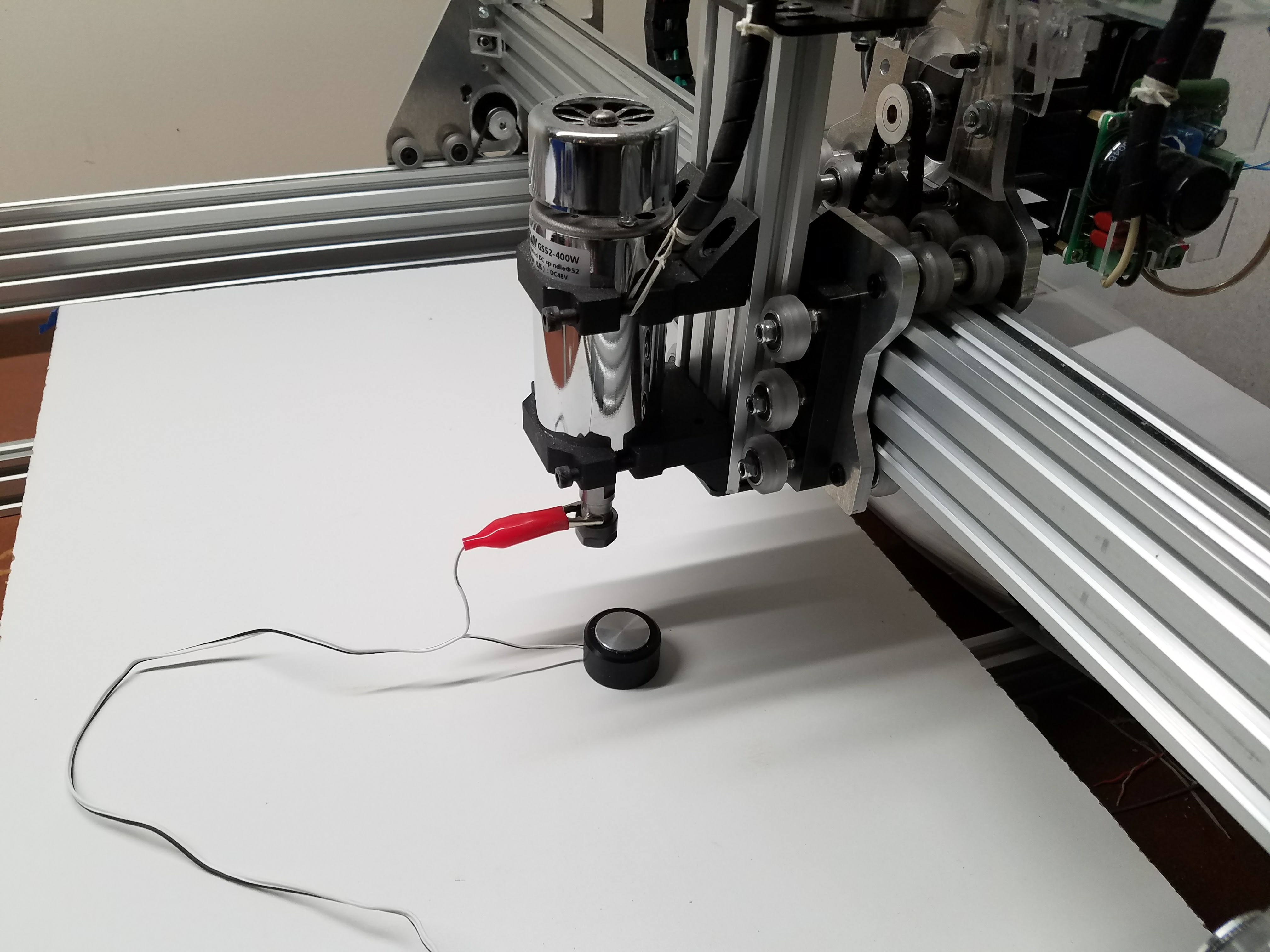

Setting up a zero touch plate on a large format OX.

Wiring
… Wire Z limit switches in series and connect to Zmax on tinyG
… Wire touch plate to Z min and ground.
I used a mono audio jack for easy insertion and removal at the controller.

Configure your Z end stops
[zsn] z switch min 0 [0=off,1=homing,2=limit,3=limit+homing]
[zsx] z switch max 3 [0=off,1=homing,2=limit,3=limit+homing]

@CP
Open the CP Touch Plate widget and hit run…

Thanks to @sszafran for his help.

https://plus.google.com/u/0/105696631925164417072/posts/YNPha6rLyLZ

42efbfb1203d3dc5ba9809520aa8388f.jpeg4032×3024 1.02 MB

f53c6fb5b8446346e9d6d970d63427d4.jpeg4032×3024 1.56 MB

c6a879887fd7ac8e988c4728ae888c7b.jpeg4032×3024 1.52 MB

859234350569460572b7a202ef5f0c5e.jpeg3840×2160 772 KB

2

Great post @donkjr glad to see your back playing with the OX.

3

@Brandon_Satterfield ya my summer distractions are mostly over :)!
