Sound Reactive Hat https://youtu.be/mPEwysahBKo MSGEQ7 MAX9814 NodeMCU EPS8266 LED's are powered off 2 18650s

Tommy_Sciano · June 18, 2017, 2:58am

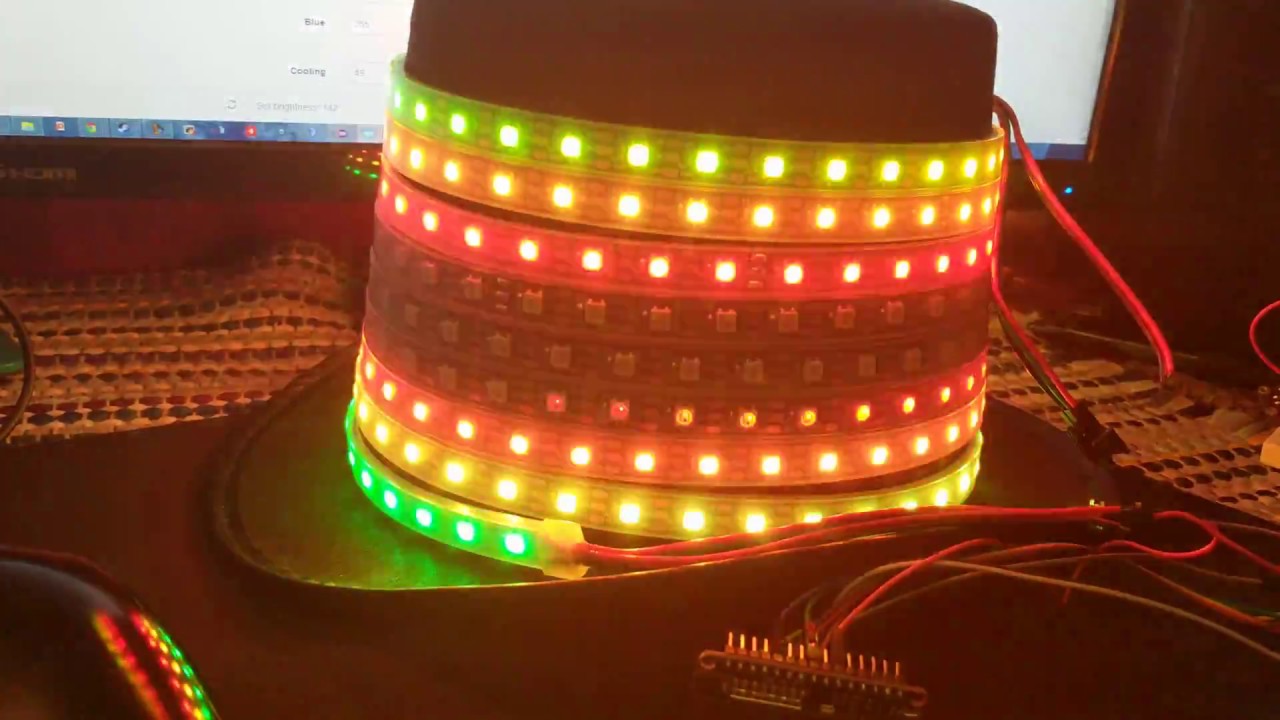

Sound Reactive Hat

MSGEQ7 MAX9814 NodeMCU EPS8266

LED’s are powered off 2 18650s from
XCSOURCE 1A 5V Micro USB TP4056 Lithium Battery Power Charger Board Module TE420

Nodemcu currently powered off of USB

Thanks to @Jason_Coon for making the github, and thanks to @Garrett_Mace for making the MSGEQ7 audio file from his sound sensor for better pairing and AGC with the msgeq7+electret!

MSGEQ7 Board
https://oshpark.com/shared_projects/vmc2VOIa

MSGEQ7 has 2 100uf capacitors in parallel on analog in and out on the msgeq7 board. Msgeq7 in comes fro MAX9814

also thanks to @Christian_Witzel for the MAX9814 with 100uf capacitors in parallel suggestion

will test with Wemos D1 mini soon, I expect better results from the MSGEQ7 with the 5V from the D1 Mini

Jesus_Climent · June 19, 2017, 4:27pm

Where are you planning to wear this hat?

Christian_Witzel · June 20, 2017, 4:50am

Yeah, i like the effect. I am going out with my hat on a festival for the first time this weekend. Maybe i will add your effect to my hat

Christian_Witzel · June 20, 2017, 4:52am

I also added some 18650 power modules, to charge it during the day with my anker solar panel.

Christian_Witzel · June 20, 2017, 4:59am

Can you pls share the code u use for the effect only? Best before wednesday…

Tommy_Sciano · June 20, 2017, 6:59am

github.com

jasoncoon/esp8266-fastled-audio/blob/main/Audio.h#L351-L372


void drawVU() {
  CRGB pixelColor;

  const float xScale = 255.0 / (NUM_LEDS / 2);
  float specCombo = (spectrumDecay[0] + spectrumDecay[1] + spectrumDecay[2] + spectrumDecay[3]) / 4.0;

  for (byte x = 0; x < NUM_LEDS / 2; x++) {
    int senseValue = specCombo / VUScaleFactor - xScale * x;
    int pixelBrightness = senseValue * VUFadeFactor;
    if (pixelBrightness > 255) pixelBrightness = 255;
    if (pixelBrightness < 0) pixelBrightness = 0;

    int pixelPaletteIndex = senseValue / VUPaletteFactor - 15;
    if (pixelPaletteIndex > 240) pixelPaletteIndex = 240;
    if (pixelPaletteIndex < 0) pixelPaletteIndex = 0;

    pixelColor = ColorFromPalette(palettes[currentPaletteIndex], pixelPaletteIndex, pixelBrightness);

    leds[x] = pixelColor;
    leds[NUM_LEDS - x - 1] = pixelColor;

This file has been truncated. show original

some of the effects don’t work, and some cause watchdog resets still, but that draw VU works fine. Use the audio.h that I think macetech created for his soundsensor, its really good for gain and stuff

I think it was originally made for the RGBShades but it was ported by jason for single strip.
this is the XY version

github.com

macetech/RGBShadesAudio/blob/master/effects.h#L382-L417


        if (pixelPaletteIndex < 0) pixelPaletteIndex = 0;

        pixelColor = ColorFromPalette(currentPalette, pixelPaletteIndex, pixelBrightness);
      }
      leds[XY(x, y)] = pixelColor;
      leds[XY(kMatrixWidth - x - 1, y)] = pixelColor;
    }
  }


}

#define VUFadeFactor 5
#define VUScaleFactor 2.0
#define VUPaletteFactor 1.5
void drawVU() {
  // startup tasks
  if (effectInit == false) {
    effectInit = true;
    effectDelay = 10;

This file has been truncated. show original

Tommy_Sciano · June 20, 2017, 7:17am

@Jesus_Climent no plans as of yet, I did the first intial test with the nodemcu, but the nodemcu is only 3.3v. I accidently fried a wemos d1 mini a week ago, but got 2 more in today. I know that the msgeq7 and max9814 work better with 5v so I am going to post some updates to hopefully show that the 5v from the wemos d1 mini gives more fidelity to the msgeq7 with max9814. I also started a pcb/ shield for the wemos d1 for this setup.
https://oshpark.com/shared_projects/VpBiNuYY
dont make this one, its just an example

Devon_Meyers · July 16, 2017, 1:15am

@Tommy_Sciano the link isnt working for the OSH Park files

Tommy_Sciano · July 16, 2017, 7:31am

I took it down because I accidentally switched the the parts and had to install my board upside down, Ill upload the new fixed pcb

Devon_Meyers · July 16, 2017, 7:35am

@Tommy_Sciano thanks!

Tommy_Sciano · July 16, 2017, 7:36am

https://oshpark.com/shared_projects/L09B9Ger

I think this should be the fixed version

Devon_Meyers · July 16, 2017, 10:46pm

Is there a parts list? I ordered the boards now want to play around with building a few

Tommy_Sciano · July 17, 2017, 2:28am

I really hope that I made them correct this time, I think its correct this time when I compared it to the old one, But I haven’t ordered any yet, just made a printout and checked on paper.

MAX9814 Electret MIC Microphone Amplifier Module

MSGEQ7 Breakout
https://oshpark.com/shared_projects/vmc2VOIa

Wemos D1 Mini

and 2 100uf Capacitors

msgeq7 breakout board
2 x 100nf 33pf 10nf , 200k resistor and mesgeq7 chip

Tommy_Sciano · August 5, 2017, 4:46am

@Devon_Meyers did it work out for you?
