Starting to plan out building a low cost dlp printer.

3D Printing
,
1

Starting to plan out building a low cost dlp printer. What slicing software is reccomended?

2

Slic3r can slice to svg, so can others. But you have so many other choices to make first, like light engine and controller and CPU and hardware.

3

Already have those mostly figured out.

4

The biggest problem is building a high accuracy z axis. Gonna use a sloppy screw compensated by a linear encoder. Light engine is of the shelf dlp possibly modified to blue or near UV led

5

Creation Workshop is probably the go-to DLP printer control/slicing software around at the moment…

6

Would be great to see your setup. I’ve been very keen to build one.

7

Yeah, I plan on documenting it. Component cost wise, its come out to ~$1000 including DLP.

8

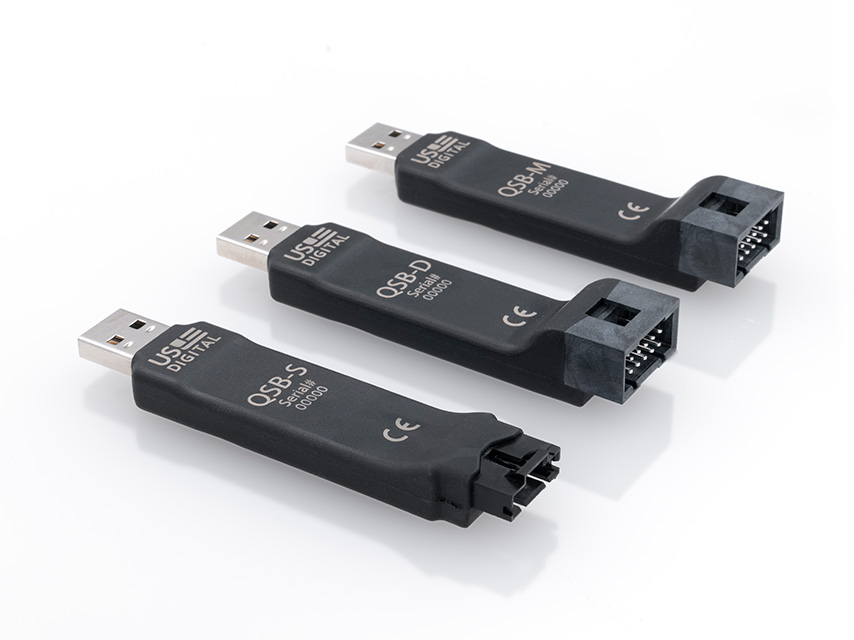

I did find a cool usb dongle which supports reading a linear quadrature encoder, and allows you to also control a stepper motor in response. Speaks a simple protocol over serial USB

9

Alright, so after hearing the deep imager 5 guys use a modified pico projector and get ultrafast cure time, I am thinking of going with

with http://www.aaxatech.com/products/led_pico_pocket_projector.html

Its cheap, I can afford to break a few, and I think it uses a single RGB LED, so refitting with a near-uv LED should be easy.

I plan on using a 405 nm LED, because I do have concerns with UV cooking the LCOS chip. Most photo resins cure fine with light < 420nm

AAXA also offers light engines with basic pricing info, so I’ve inquired about them as well.

10

You might want to verify curing with your LED of choice before you get everything built and buttoned up. (Not speaking from experience or anything,)

11

Oh yeah, I plan on doing that.
