Table built (torsion box) on top of solid maple table.

General CNC CNC Routers
, ,
1

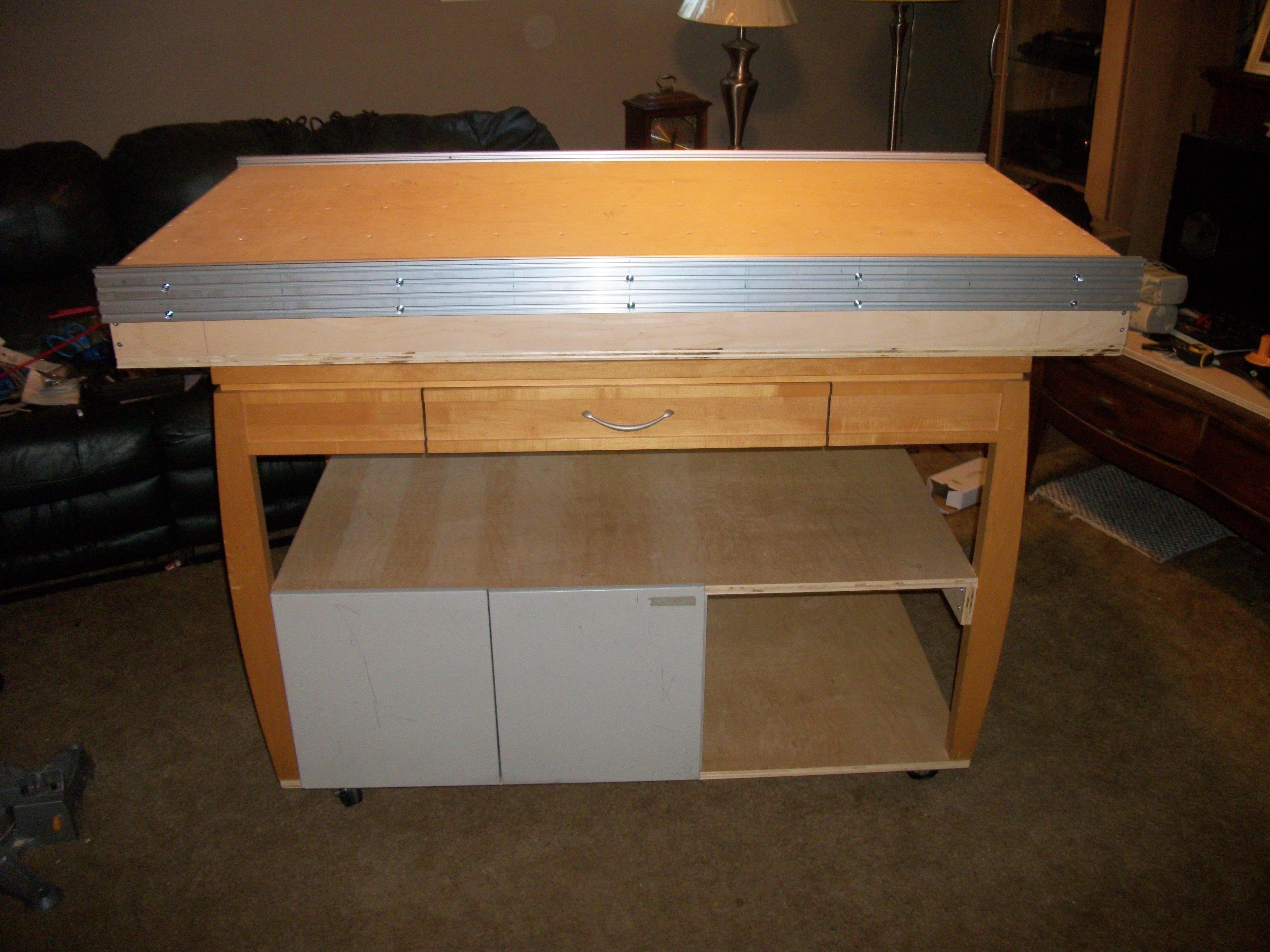

Table built (torsion box) on top of solid maple table. Added shelves and control enclosure, Y axis rails mounted. Just need the Ox plates now to continue the build.

a758b01ecf26cbbba6447a02cae862a0.jpeg4000×3000 2.48 MB

2c3429f250753cca00714c6d8b60f6a9.jpeg4000×3000 2.31 MB

2

Beautiful!

3

Thanks. Using the torsion box made the table very straight and true. And mounting the rails on the side eliminates 99% of the Y axis flex, being supported all along the entire axis. I have +Peter van der Walt to thank for that idea. @Alex_Krause has made me the OX plates, they will be here in a few days. This build will be the test rig for LaserWeb, will be testing various controllers with the LaserWeb software.

4

I made a huge torsion box workbench once. I love that design. When I think about torsion box now, it’s almost like a 3D-printed slab, with a box infill structure.
