Thanks to @Thomas_Sanladerer excellent guide I now have automatic bed tramming/levelling/teilt compensation on my @nop_head Mendel90

My bracket is here:

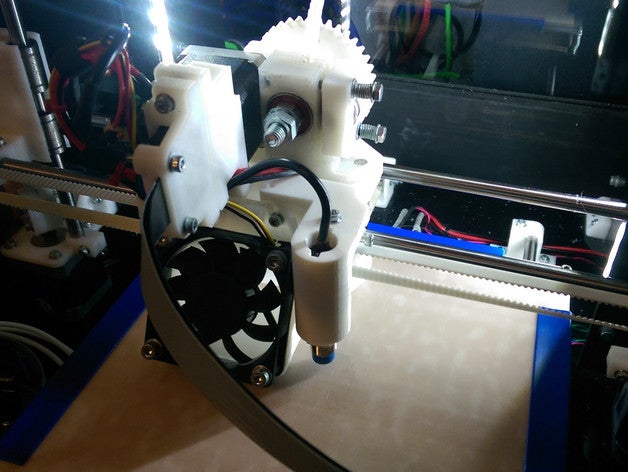

Z-Probe bracket for NopHead Mendel90 (diabond) by DanielBull

My printer is modified with an E3D but the bracket should also work with the regular J Head (let me know if it doesn’t and I’ll adjust the file).

Thomas’ video if you haven’t already seen it is here:

3D printing guides: Setting up auto bed tramming leveling tilt compensation!

For those wondering about the bed I am using its a metal infused PRINTinZ plate, more details here:
https://plus.google.com/109352235257103413028/posts/AbBEpZH71PL

My modified/configured Marlin firmware is here but obviously you will need to adjust this for your particular setup, my Mendel90 is modified quite a bit:
https://github.com/NeonHorizon/Marlin

For those wondering about how I modified the printer for the E3D including the fan duct and wiring check here:
https://plus.google.com/109352235257103413028/posts/Kw1YdHB2iZB

[Markus_Granberg]

Is that a 50mm fan?

[Daniel_Bull]

Its the standard NopHead fan, yeah 50mm I think.

[Daniel_Bull]

Good luck

[Mike_Kelly_Mike_Make (Mike Kelly)]

Does the printinz plate by itself trigger the prox sensor?

[Daniel_Bull]

Yes, I have the metal infused version.

[Mike_Kelly_Mike_Make (Mike Kelly)]

So it will trigger just off the plate even if it’s glass underneath

[Daniel_Bull]

Yes that’s right. I think its copper infused?

[Daniel_Bull]

@Wayne_Huthmaker ​ what is it you infuse the PRINTinZ plate with? I found it worked really well with the sensor.

[Wayne_Huthmaker]

It has a very thin layer of copper just below the outer skin on both sides. There is about.030" of material above the copper.
