The new ESP32 pinout by +Alberto Piganti - great work! Originally shared by Alberto

Electronics
, ,
1

The new ESP32 pinout by +Alberto Piganti - great work!

Originally shared by Alberto Piganti

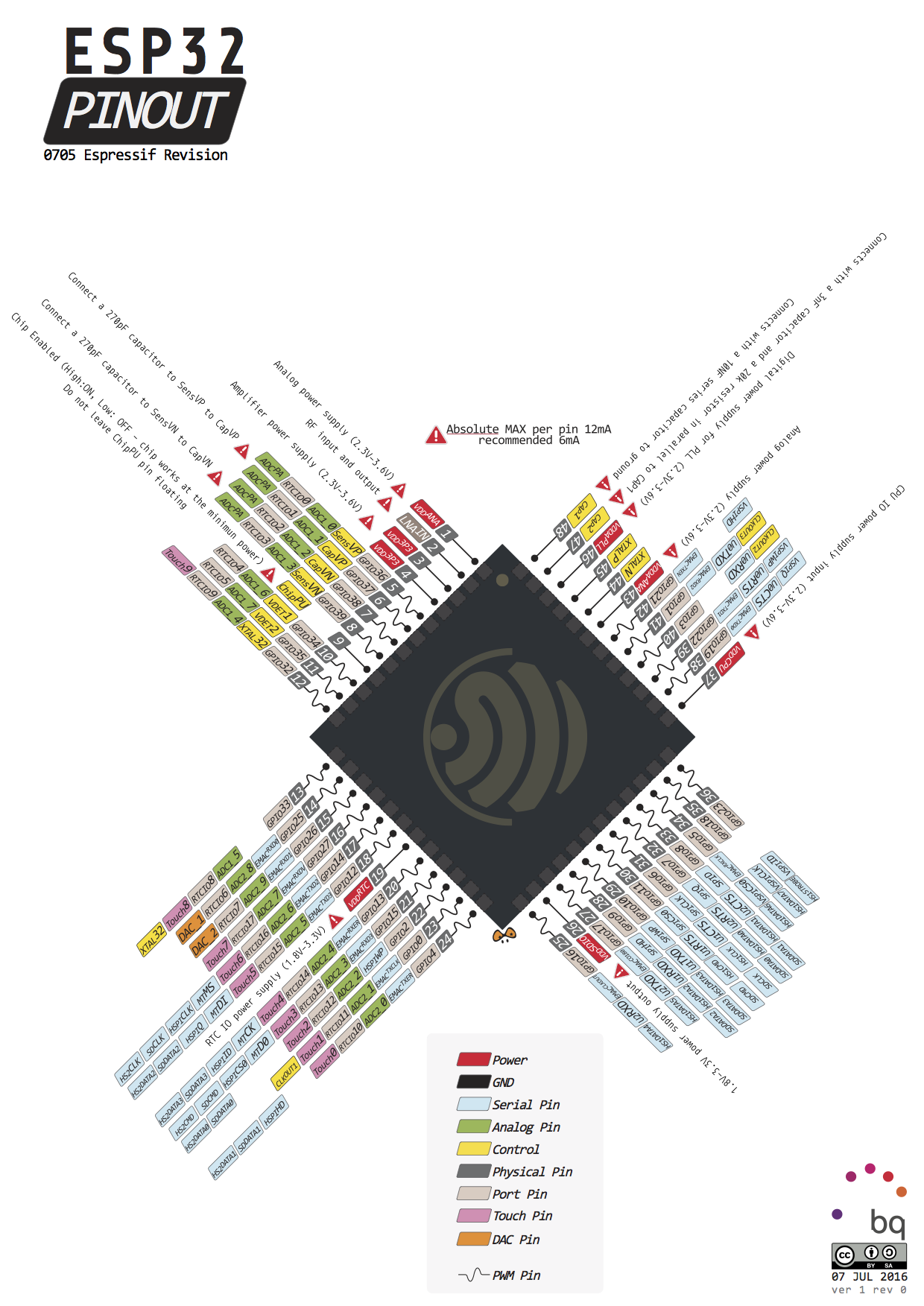

The new #ESP32 @EspressifSystem specs
Pinout & Datasheet!

http://www.pighixxx.com/test/2016/07/the-new-esp32-specs/

9ae64af575d0d62797c4cbc37ad7feb5.png1240×1753 597 KB
