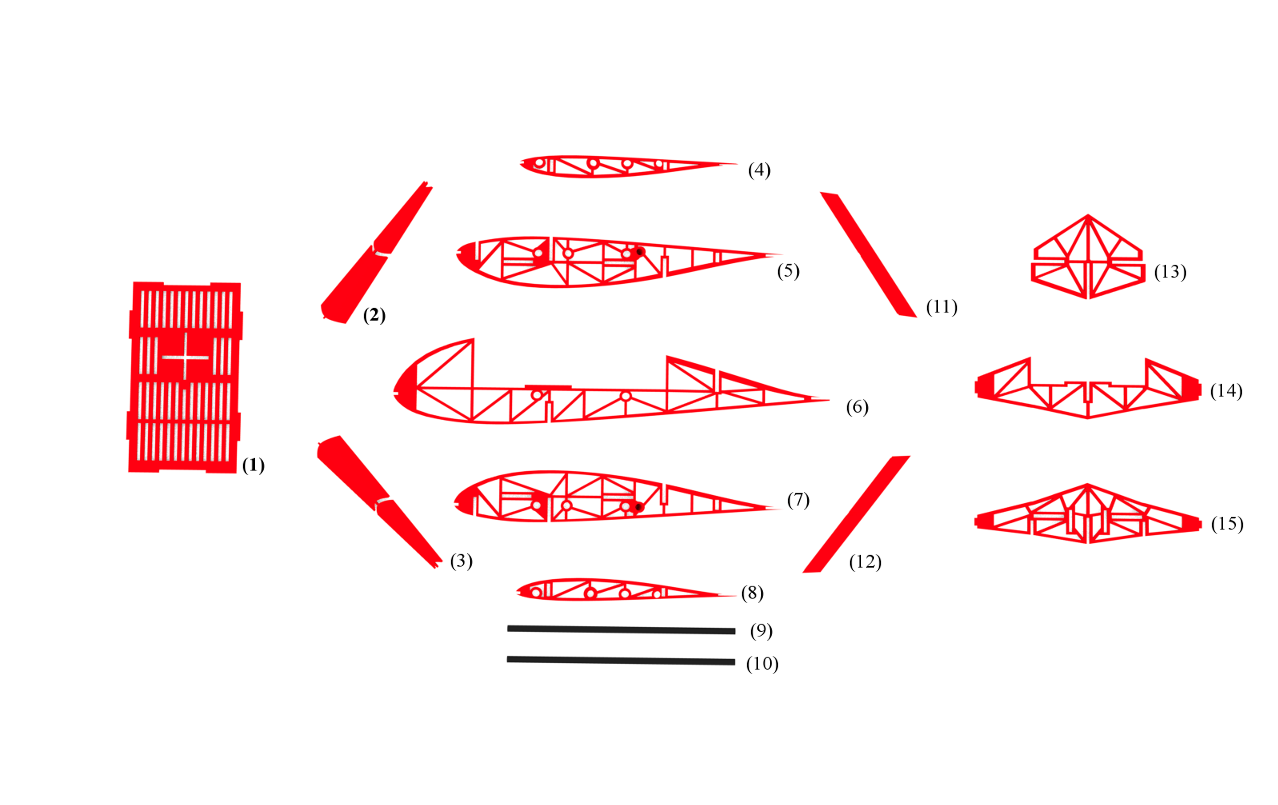

Updated my part breakout illustrations. For a full accounting of the parts with descriptions, check out the project’s homepage: http://www.circuitgrove.com/products/openrc-swift.
I’m building up documentation slowly, feel free to suggest ideas or improvements.
Do consider spatially locate the parts numbering, sometimes on the top, left, bottom & not always on the right. This offers a more spatial experience for the eyes. Especially the 2nd PIC in the album.
