Want to make a interlocking/stacking 3d laser cut model from an stl… Check out http://www.123dapp.com you can specify output page size to make very large models even with the limited cutting area of a K40 or A4 size diode
http://www.123dapp.com/make

2

Are you able to download this? For some reason on Mac it’s saying it’s not available in the US.

3

Yeah I have it on my PC

4

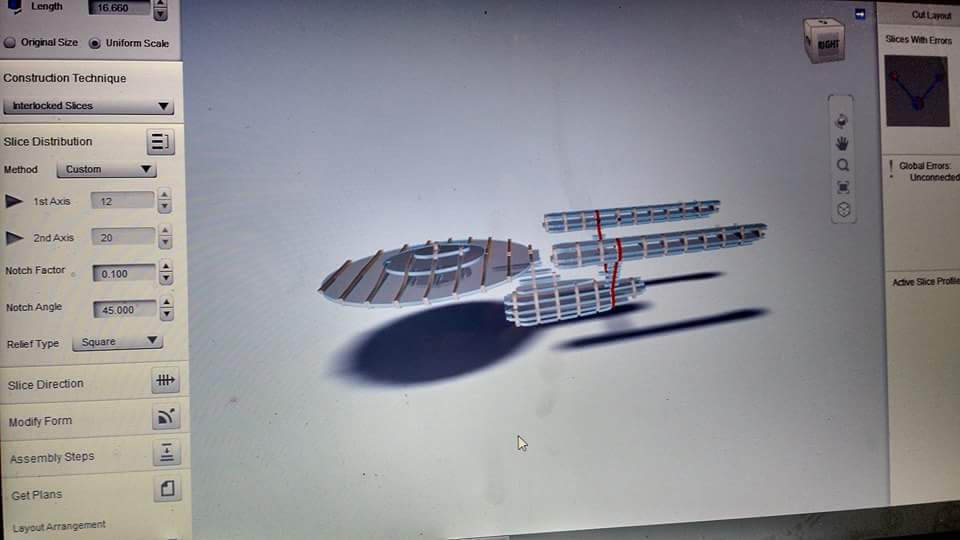

Took just a few minutes to make this

4beeafca001b43666248c9de6b357b77.jpeg960×540 33.8 KB

5

Output looks like this and it generates an assembly guide and numbers the parts

3ddc63dd7dad32257f01704bb27f59e7.jpeg960×692 47.5 KB

6

@K1111 ​ ^^^^

7

That’s really freaking cool!

8

They could work on their nesting a bit to maximize the pieces per page… But other than that works pretty good

9

Can you input the thickness size of your wood?

10

Yep :slight_smile:

11

It generates the tabs accordingly

12

Bummer… Looks like they are shutting it down.
