We need data about the power connector your K40 comes with please!
And please tell us whether that is on the JST or Screw Terminal PSU type and whether you have a ribbon cable.
Originally shared by Carl Fisher
I was talking with @raykholo about the design of the daughter board connector that takes the main PSU power feed on the C3D boards. Specifically around the plug used by the various power supplies.

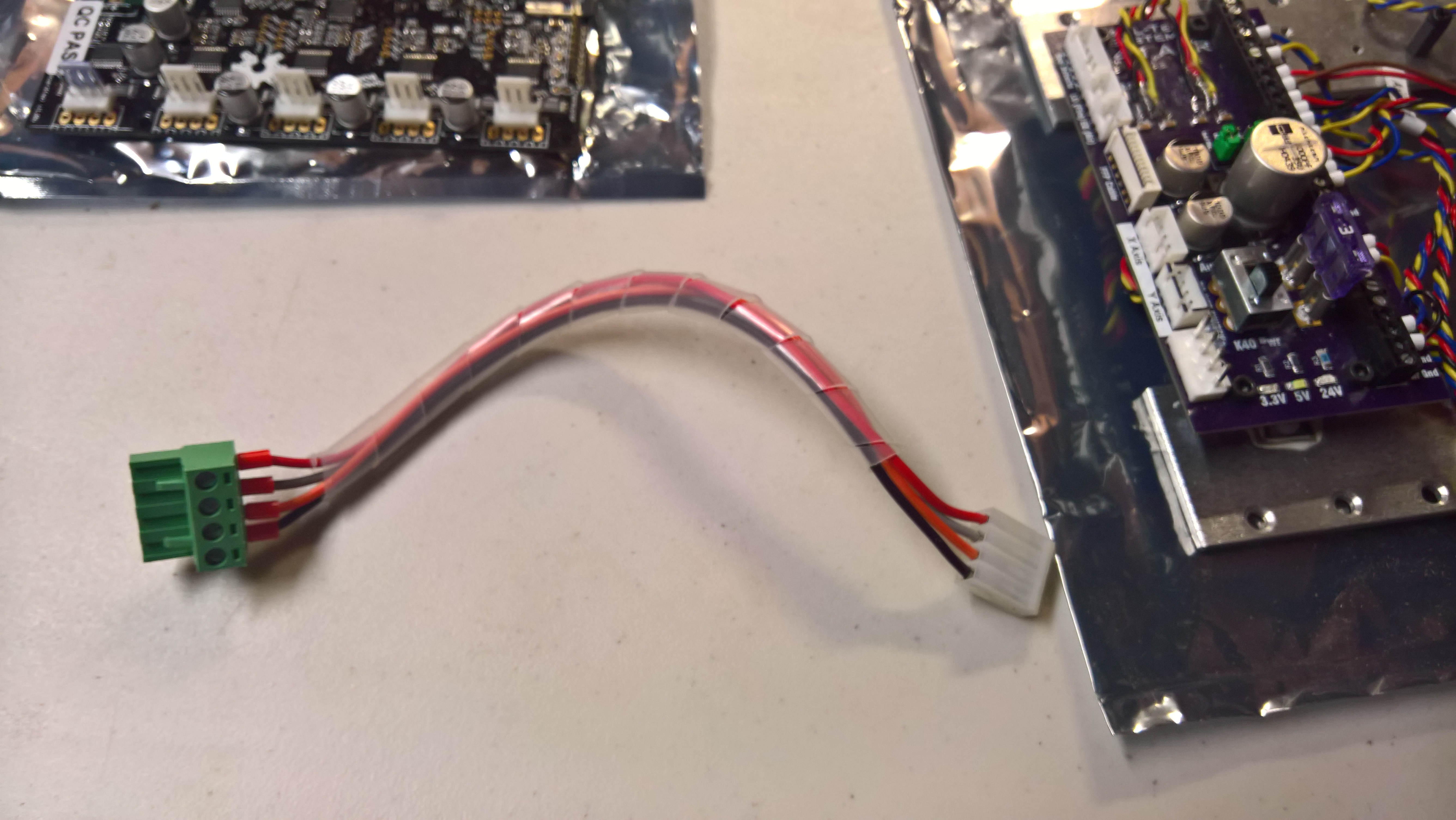

It appears that mine is somewhat backwards from his but I’m wondering if there are even more options out there. Attached is a picture of mine which as you can see doesn’t fit the board connector properly, but does work while his fits properly and appears to be reversed from mine.
My LPS has this connector for the DC.
-Conn Recept 4 pos W/RAMP SL-156
-TE ConnectivityAMP
-Amp PN: 640250-4
-Digikey PN: A19952-ND
-Pins for above: A19991CT-ND
There are no ribbon cables on my LPS

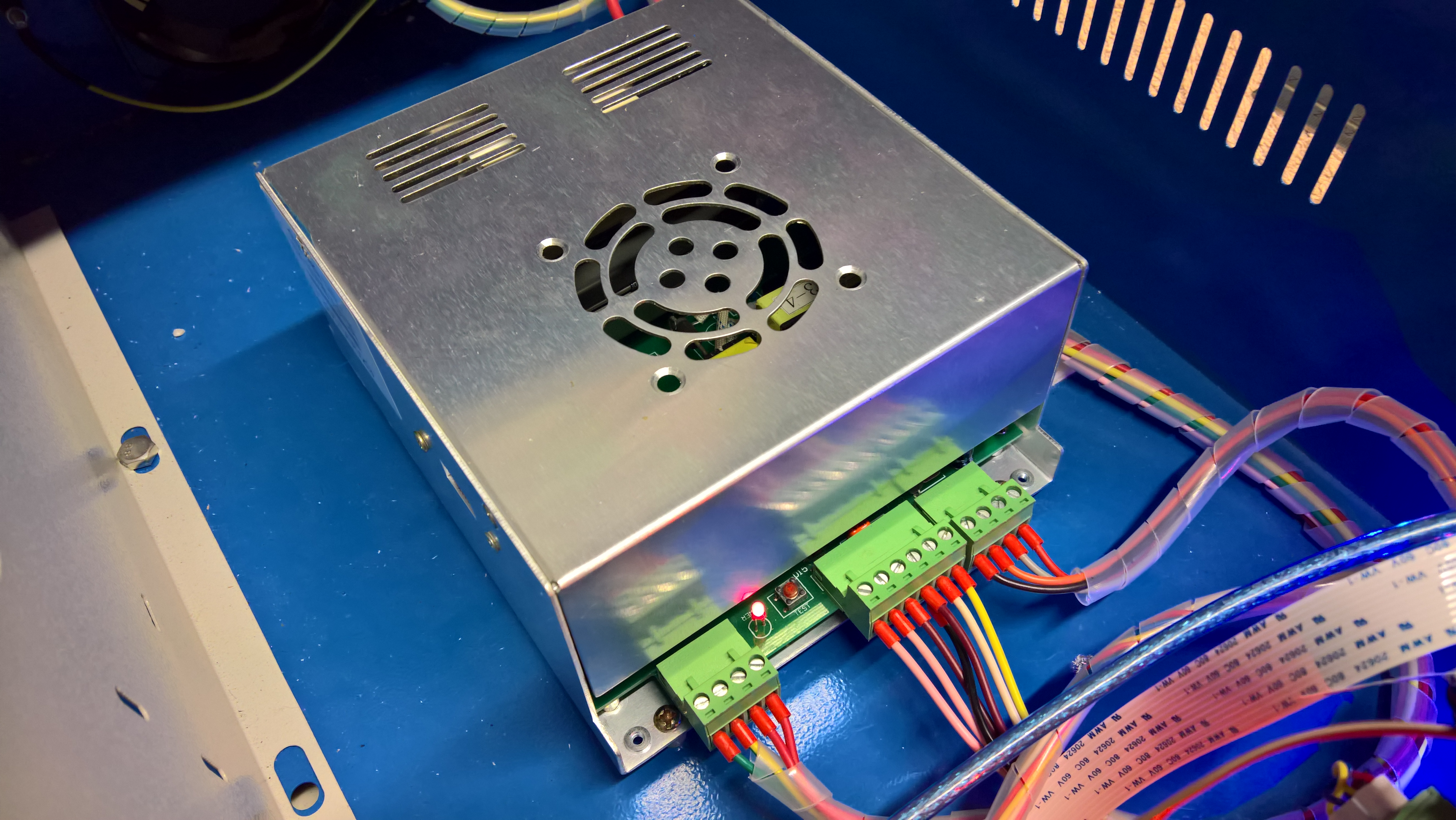

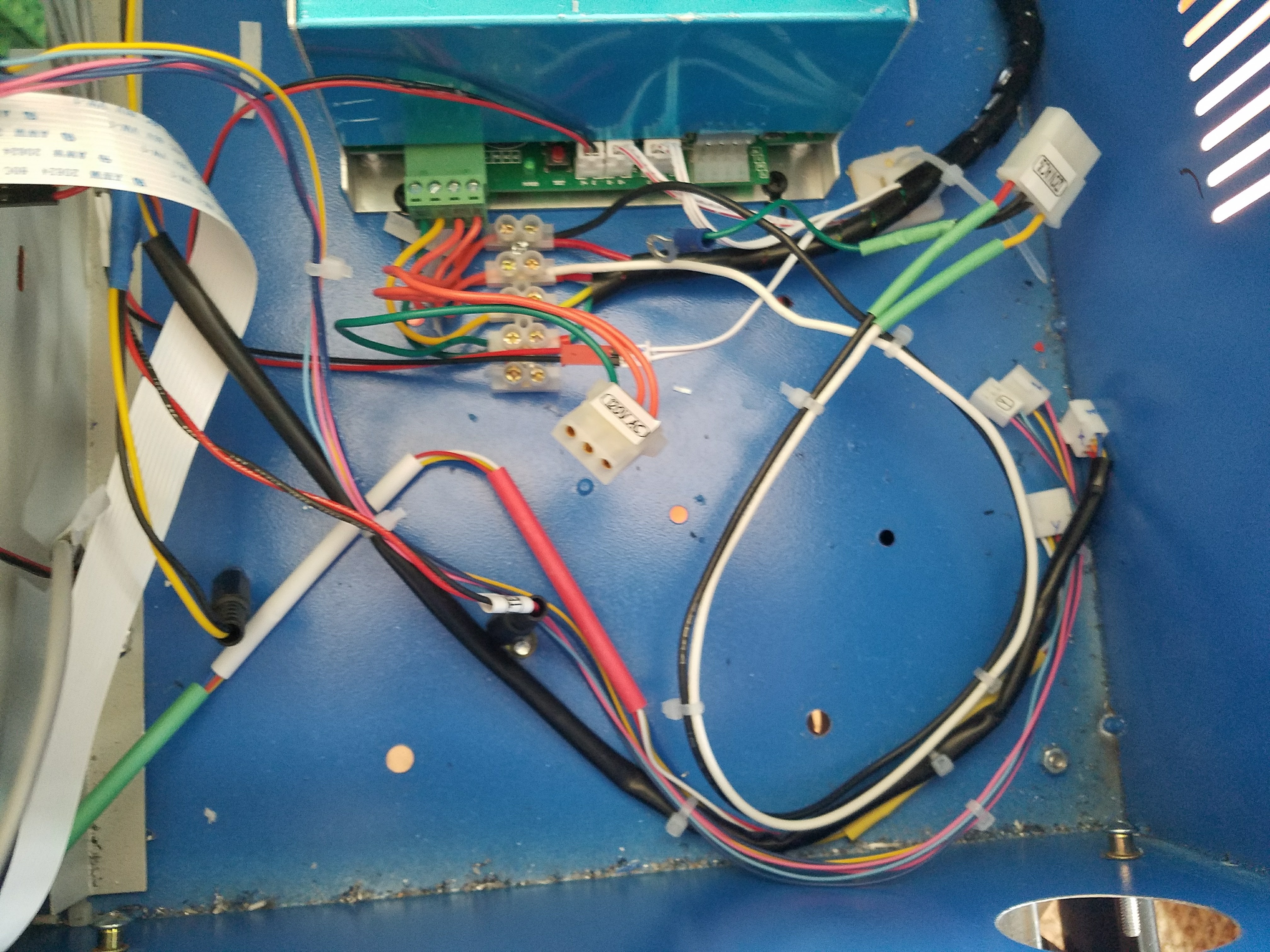

You can see my LPS in this picture.
The connector above is the one on the right in this picture.
Ignore my wiring as this is my smoothie conversion not a stock K40.
)
