well I had a major delay in building my ledtable.

Archive FastLED Archive
1

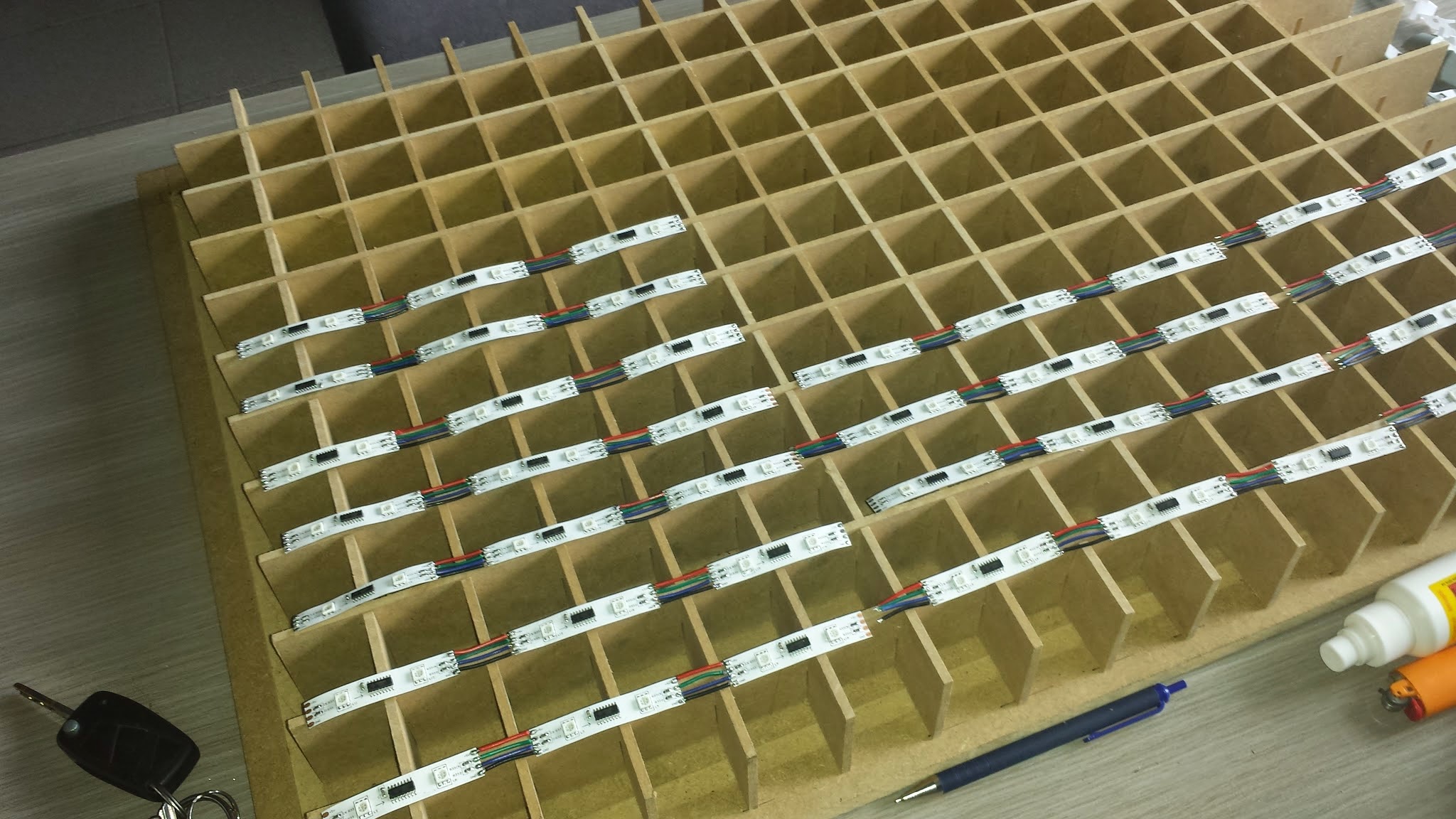

well I had a major delay in building my ledtable. It took over 3 months to receive my lpd8806 ledstrip from china. The past days I did all the soldering. Oooh boy that was a lot of work. Here are some pictures…

77e7845edf9be1b88c077b51a6aa7803.jpeg2048×1152 384 KB

6a857466b3a8639a6d226297f1079b55.jpeg2048×1152 480 KB

6a10eb665200fb44264a530608b8d6a1.jpeg2048×1152 431 KB

e1cee9bfd3a03f33d96e16fc3701d11d.jpeg1152×2048 380 KB

bd6890cc3109edef27f43d9cf4ca9e16.jpeg2048×1152 343 KB

e256eb9c9fa030bef2a6bcfbd77e21a6.jpeg1152×2048 375 KB

679dcb6a2c3f02c3e1b0c2aa82090eab.jpeg1152×2048 347 KB

ca4989ab318e2724404c390b99319472.jpeg2048×1152 349 KB

b8b8b3a4a96ddc47afbed99e1828b837.jpeg1152×2048 217 KB

1b7c1d68d56c3b570dd1ae22c5ddee18.jpeg2048×1152 366 KB

2

Oh gawd you cut the strips into 2-LED sections and soldered more wire in for length? Holy crap what a pain in the balls. I’m not seeing any wired lpd8806 pixels on Ray Wu’s store either, there are heaps of ws2812 ones.

3

hi Robert, yes it was a pain in the ass :slight_smile: but really worth it for having squares that are ±1cm larger. I wanted rather big pixels and 32pix/meter was the less “dens” strip that I could find, so I ended up cutting them lol. I chose the LPD8806 strip because it uses a clock and a data line what make it easier to work with a raspberry pi. I opted for separate (with no wire) ws2811 pixels but the I had to solder 6 connections/led and with the LPD8806 strip only 4 connections/leds. I bought my ledstrip here

4

For “next time” (ha!) something like this might be easier: http://www.alibaba.com/product-detail/Programmable-SMD5050-Pixel-LED-Module-LPD8806IC_1328471631.html

(I searched Alibaba for “lpd8806 pixel string”. Note that these are 12V and 3x 5050LEDs per pixel so they’re going to be much brighter, though you can now easily fix that in software with FastLED.)
