Work in progress upgrading my auto-telescope mini project with 2nd iteration (1st iteration: https://plus.google.com/+SameerAnsariSam/posts/gdmSsvKL78f)

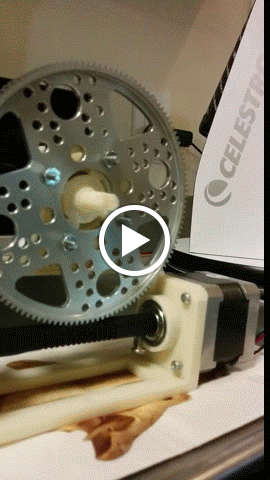

Worm gear design, torque is way lower thanks to worm physics, and 128 teeth theoretically yields 128:1 x200 steps = 25,600:1 gear ratio or = 0.0140625 degrees, with 16x thats ~0.0009 degrees or 3.2 arc seconds

32x could give ~1.6 arc seconds almost reaching the fabled 1 arc second precision which’ll be the goal of 3rd iteration.

The original gear setup had barely a 6:1 ratio x200 steps = 1200:1 gear ratio or 0.3 degree resolution, terribad but fun.
With microstepping could get up to 16x ~ 0.01875 degrees but slipping due to torque happens, 32x microstepping was a no-go.


a3ec7a9147e10ce2ab666e54e7705f14.jpeg2368×3200 1.57 MB

1d66d5237e70ac5320b29b3c640d611f.jpeg2368×3200 1.6 MB

2f6da919b487b443cca9ff483f8b9e68.jpeg2368×3200 1.77 MB

47850bb8da326e697953f4c94a313679.jpeg3200×2368 1.75 MB

848b4c79afbfd63e4453b648549e394e.jpeg1656×1063 356 KB

2

can u share SW files?

3

@Zviad_Sulaberidze Here is a drive link https://drive.google.com/folderview?id=0BwW6qsUNa47xTF9Yb1k3MHlIY1E&usp=sharing

4

many thanks :slight_smile: did you use any gear calculators, or theory? I have in mind to make a gearbox for my robot, but don’t know where to start

5

A little theory ~ # teeth on worm gear = gear ratio to worm, made sure to match the pitch. This site gave me a rough idea of how to make a gear http://grabcad.com/questions/tutorial-how-to-model-a-gear-in-solidworks-and-show-design-intent , also designing the worm is really similar to designing a spur, just using a helix as a guide path instead of circular pattern
