Yesterday I showed drawings of my next project. Today I show you the almost finished project.

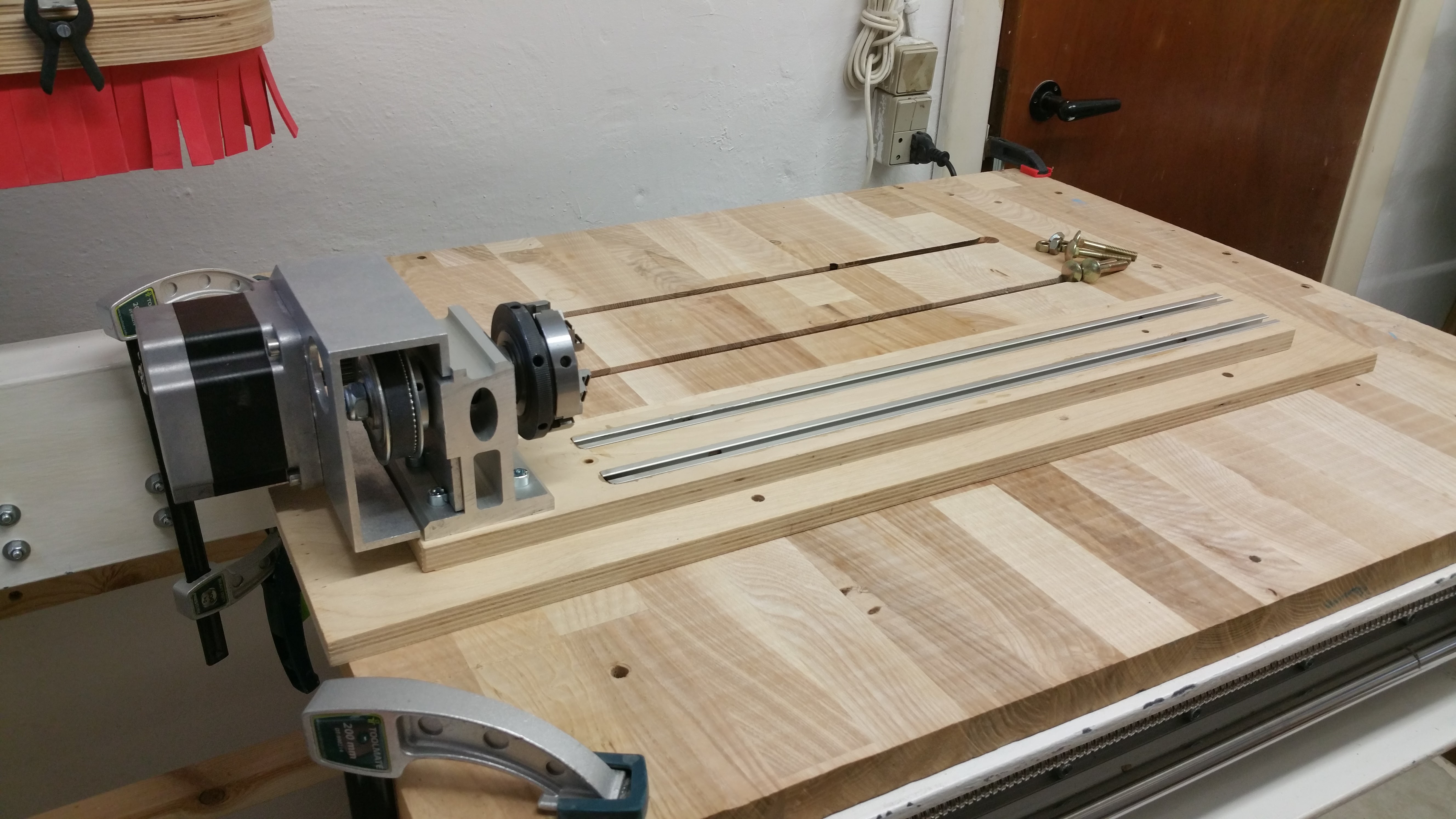

This is the 4 axis module for my DIY CNC.

Now I need to connect to electronics…

910de2ab3b29dd5c60572e9e23f7065f.jpeg5312×2988 1.74 MB

994597f451bc7bdb2e08eb30aa2ac336.jpeg5312×2988 1.46 MB

1fd991b60e6da906db4fd57f81c4c82b.jpeg5312×2988 1.47 MB

54accbdc03473947c40d2c67962d9b26.jpeg5312×2988 1.54 MB

0f00e5cc9e7bdc2e38b5f3512d6ab0af.gif854×480 274 KB

2

I like it. Might be interested in building something similar. Do you have a parts list and design files available?
I know Openbuilds has started carrying the GT3 belt loop and pulleys for using this reduction with a Nema 23.

3

There ain’t much design over this. It’s built from parts and scrap i have had lying around. The t-slots are curtain rails for instance. The tail stock and chuck is purchased from eBay. The nema 23 it came with is now replaced with a nema 34. Most of my time making it was spent ensuring best alignment of all parts.
