Z Axis Stop Switch.

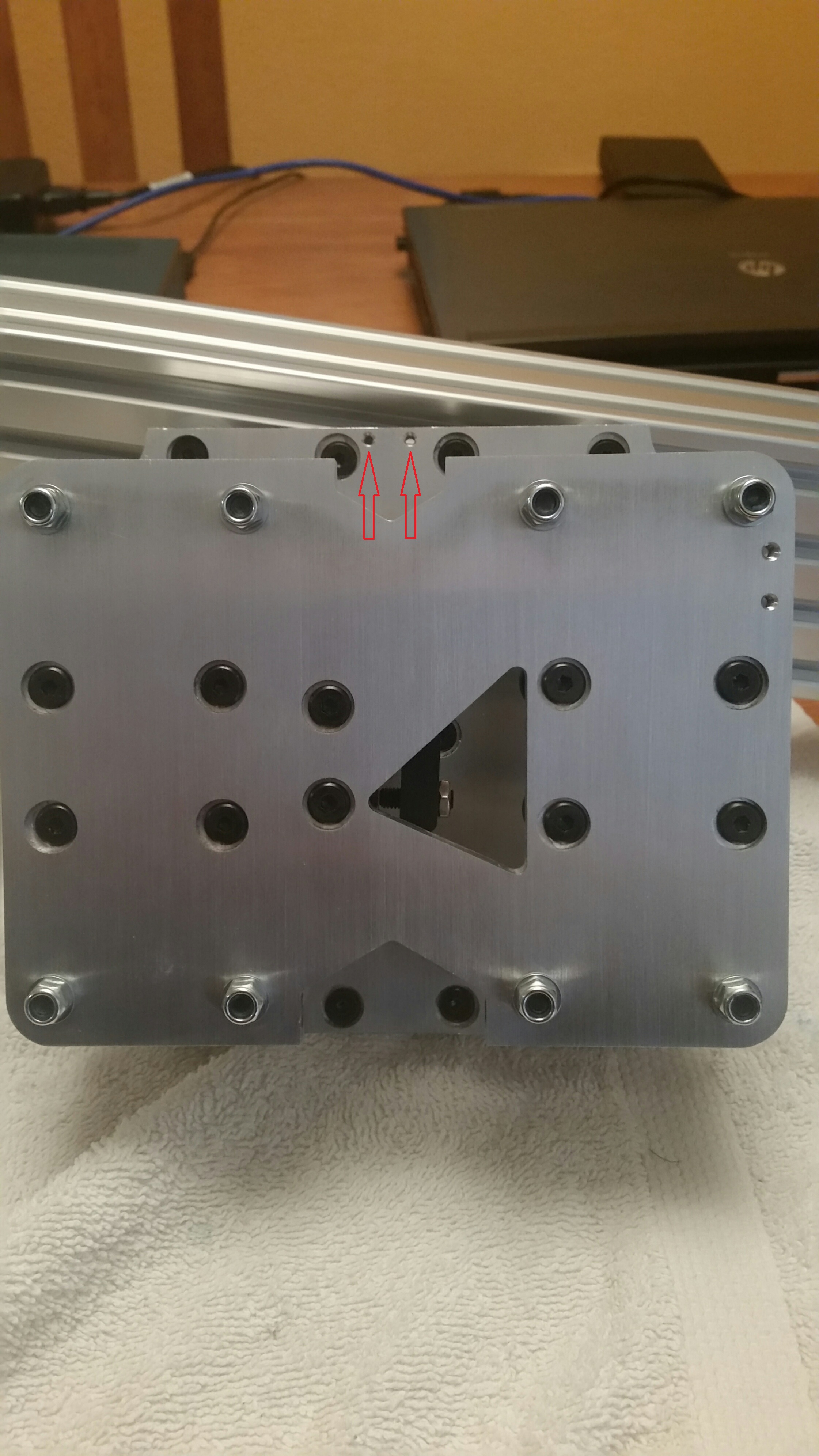

Here are pics of the front/rear R7 Z-ganty plates, bolted together.

Note red arrows pointing to tapped stop switch mounting holes at top. Is this the correct location for the holes or do I need to flip the plate upside down before I mount on C-Beam?
.

4b207c7194a5aaf1fd1952dc229ab0b8.jpeg2241×3984 1.33 MB

691785d366435f38e24fc0c17d7a40cf.jpeg2241×3984 1.22 MB

2

Flip it upside down. The z gantry homes to max that way.

3

Thanks very much!
