FIXED! I will try to ask here as there is a lot of people

Lasers
,
1

FIXED!

I will try to ask here as there is a lot of people with good knowledge in laser cutters…

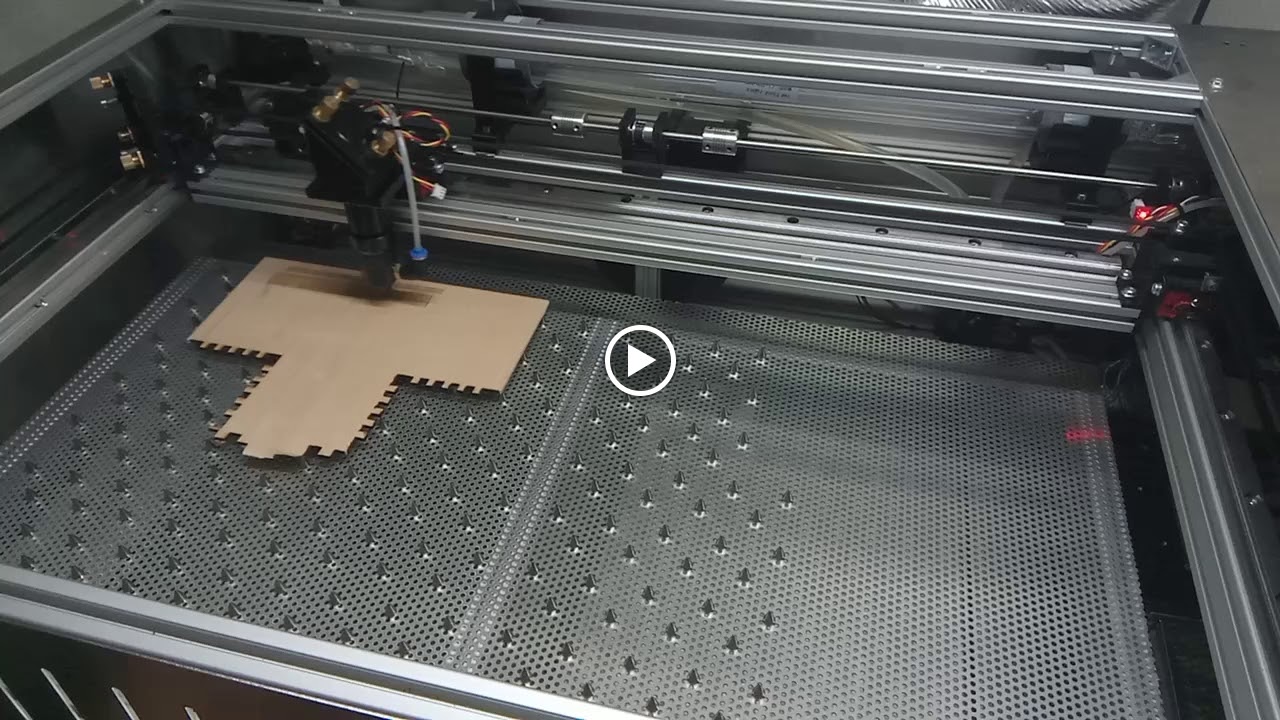

After i have almost finish with my custom 50w laser build i have make some test cuts … the pieces i cut was squares and circles , in my X axis i am dead right in my measurement but in my Y axis i am off about 0.2mm.
I have measure my Y axis distance with dial gauge it was right … i have fire laser dot in distance from 0-10, 0-100, 0-200 mm is dead right … but when i cut a piece i am off … Any thoughts why is this happened ??

I am using #C3D mini with LW3

857e80c005814b4d440c073e99c4c514.jpeg1280×720 190 KB

edded81d8a79db4acdb78c2ec966b7fb.jpeg5376×3024 2.43 MB

2

Are you saying that you measured the Y movement without cutting and it is dead on. Then when you measure it when cutting it is off .2mm?

How did you measure these …?

3

Nice build. Why LW3 and not LW4

4

@donkjr measure what? the 0.2mm difference in actual piece i was cut do you mean ? with my caliper …

5

@Ariel_Yahni_UniKpty Thanks ! … i wanted first to finish with my build and then i start to learn the LW4 … as i find it a bit complicated :slight_smile:

6

@Kostas_Filosofou you measured the cut piece and it was off .2mm from the design?
Is it off this amount on both sides? Edges are often not cut square.
… .2mm is not a lot?

7

@donkjr exactly was off about 0.2mm of the design … but only on my Y axis … yes i was measure both sides-edges of the piece … I know is not that match …but you know …
I was searching in the web now and a find a article that says maybe is the mirror alignment the problem … as i am sure that i am 100% center i’ll check it all from beginning on more time ,maybe i miss something

8

@Kostas_Filosofou ​ let me know if I can help you on LW4 or take a look at my stating up videos

9

Maybe steps or something is preventing correct movement

10

@ThantiK ​ this could be what you where looking for

11

@Ariel_Yahni_UniKpty Thank you :slight_smile: I have already see some of your videos …good job by the way! definitely i watch it again when i start the learning procedure

12

@Ariel_Yahni_UniKpty i have already check my steps … as i mention in my post i have measure manually ( i move the axis 1mm-10mm -100mm throw the LW) with my dial gauge and i am ok

13

@Dan_Shookowsky how do I know that?

14

Are you accounting for the kerf of the laserbeam?

15

@Dan_Shookowsky I am using illustrator …

16

@Dan_Shookowsky oh. I didn’t thought about that I’ll try it

17

I’m not sure at this point if LW accounted for the line width

18

Also have you tested LW4 to see if the same error occurs, I see you stated you are running Lw3

19

@Alex_Krause no but I try it also … I want at first to be sure that the problem isn’t hardware-mechanical

20

@Kostas_Filosofou you can always look at the Gcode to see its positioning correctly.
