Help! I need to source a large, high torque easily source-able servo motor.

3D Printing
,
1

Help! I need to source a large, high torque easily source-able servo motor. The end goal for this is to attach it to a printed gearbox to move a very large humanoid leg.

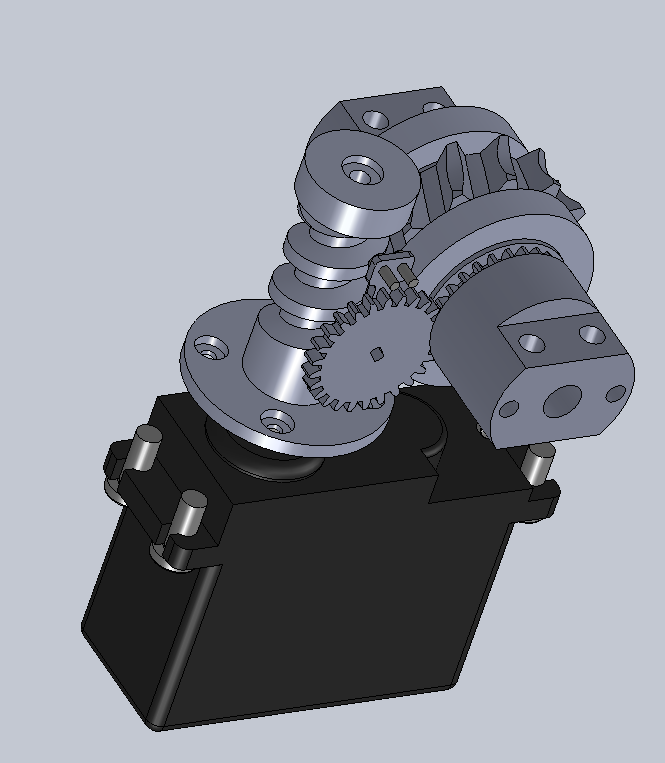

It needs to work something akin to the image below, which is what I currently use for the arms in my bot. This is not fast enough with enough torque to drive a leg.
Can anyone point me in the right direction?

EDIT:
the motor I use at the moment is a super large hitec 20kg servo. This was the best in class for reasonably priced servo tech, but it is not enough.

11029202eeabdf61dec5a8acef288e51.png665×763 52.8 KB

2

A good place to start is see what folks like Adafruit and Solarbotics offer.

For example: http://www.adafruit.com/products/1142

3

Hit the RC hobby sites. There are quite a few high torque, high strength, metal gear servos available these days.
I see ads for them in every issue of Robot and Servo magazines.

4

I should have noted I have checked the obvious places :slight_smile: I will be designing a whole new gearbox, so it doesn’t even matter too much what servo it is, as long as it is reasonably quick and high torque

5

@Andrew_Plumb
10kg/cm would be torn apart in seconds :frowning:
I currently use Hitec servvos that pull 25kg/cm. Problem with these servos is that in order to maintain speed with good output torque, the input servo needs to be good and strong.
Cheers!

6

What about Epicyclic (planetary) gearing?

7

Why use such a servo? Get a normal BLDC with a planetary gear, take an incremental sensor and build a strong “servo” that way yourself! It’s a bit more expensive but you’ll definitely have a much stronger drive than with a servo off the shelf.

8

@Hendrik_Wiese
It is something that I have thought long and hard about. Especially as I run the OpenServo project, which is designed to do exactly what you propose.
Issue I have is I want to keep this project as simple and commodity as possible so people can easily recreate it. The less custom stuff the better.
I am not ruling the idea out at the moment :slight_smile:
Thanks for the input!

9

Honestly, what most pros use are hypocycloid or harmonic drive gearing system paired with an encoder.

10

@Marco_Alici
Excellent! Thanks for the pointer

11

@ThantiK
Agreed. Even better alternative to the planetary gearing system.

12

You’re welcome, @Barry_Carter !
I worked in roll up shutter design for a while, where multi-step planetary gearboxes are used. :slight_smile:

13

Why print the gearbox?
Just because you have a hammer, not every problem is a nail.

14

I have recent servo spreadsheet here:

15

@Marcus_Wolschon
I could just as easily mill it. I have a 3 axis. It isn’t so accessible to others once you start asking them to mill pieces of a machine, or stump up £££ for a gearbox. I am working on an experiment of how much of a robot design can be printed :slight_smile:

16

@Billy
sweet, thanks

17

Valid argument.

18

Maybe you can change the gear ratio? Either gor more speed or for more torque. You can’t have both…

19

How much of an issue are backlash and speed?
I guess a leg must be pretty fast.

20

@Marcus_Wolschon backlash is not so much an issue, but obviously as little as possible. Speed and torque are the main requirements here.
